FP7000

Portable optical tracking and 3D measurement for parts, tools, surfaces and people

Overview

The FP7000 is our optical tracking and 3D measurement system built for portability and real-time performance. It remains a proven tool for capturing dimensional data on parts, tools, surfaces, and human subjects—whether in engineering, manufacturing, medical, or commercial environments. This portable CMM alternative delivers real-time 3D measurements with high accuracy and wide-range motion tracking. With wireless probe capabilities, compact design, and compatibility with leading CAD/CAM software, the FP7000 continues to help organizations improve product quality, speed up development, and streamline workflows.

Standard Kit Content

  • Optical tracking camera bar (300 mm – 1200 mm options)
  • Wireless handheld probe (200 mm – 600 mm options)
  • Wheeled carrying case
  • Charger & accessories
  • Software interface package

Key Features

  • Wireless and armless — no arm to reposition; move freely around the part
  • Dynamic tracking — follows moving objects in real time
  • All-in-one design — portable, compact system for quick setup and mobility

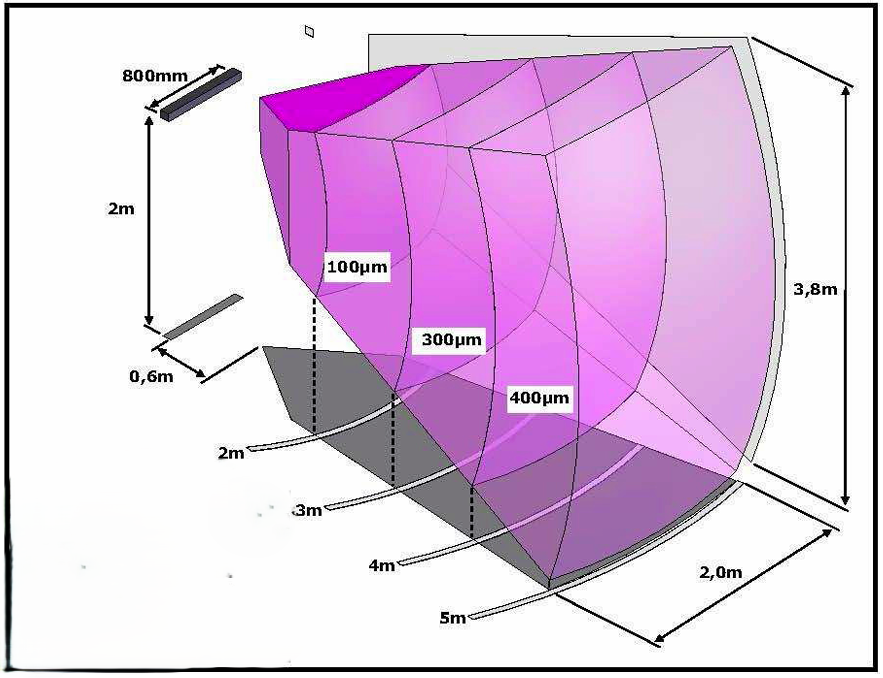

  • High accuracy — RMS error as low as 100 microns (0.004 in)
  • Wide range — up to 10 m measuring range
  • Flexible probe lengths — interchangeable tips and handheld design
  • Compatible — works with popular software like PolyWorks, Geomagic, PowerInspect, and more
