Resolute FP8000 Series
wirelss 3D measurement system
Overview
The Resolute FP8000 Series is the latest optical tracking system from BIG, built for ease-of-use and precision measurement and motion tracking. The Resolute camera connects to a host PC via a wireless connection or USB, and can run on widely available battery packs for a completely unconstrained setup.
Resolute is offered in two standard sizes: 900mm for the highest accuracy, or 400mm where a compact, portable form factor matters more.
The core system is the same in every application; only the accessories change.
Resolute-Sync captures synchronized multi-point probe data, and Resolute-Motion tracks multiple active LEDs on moving subjects.
Up and Running in Under 10 Minutes
Built for the Shop Floor
- Fully Wireless: Measurement is no snag without wires. Use a widely available battery pack for a completely cable-free experience.
- Indoor or Outdoor: Automatic shutter adjusts instantly for work inside or outside in bright light.
- Infrared Probe Link: All communication from probe to camera is infrared, so there is no pairing needed.
- Status At a Glance: Color-changing indicator lights on the camera and wireless adapter show whether your measurement is in view or out of sight.
- Rugged Hard Case: Comes with a durable case and custom foam to protect your system when it is in storage or transit.
What's included:
- Resolute camera
- Probe Tool and Wired Remote Trigger
- 4mm Carbide Ball Tips (70mm and 240mm OAL)
- 1.6m (63″) Carbon Fiber Tripod and Swivel Head
- Wireless Adapter and USB-B Cable
- 12V Camera Power Supply, 5V Probe Charger
- Rugged Transport Hard Case with Foam
Optional Add-Ons
- External Rechargeable Battery Pack
- Car Auxiliary Power Outlet Adapter
- Custom Probe Tip lengths and materials
- Multiple Synchronized tools (Resolute-Sync)
- Motion Tracking Harness (Resolute-Motion)
- Lens Hoods for outdoor use
- Custom Branding and Labeling
Specifications
| Distance | 1m* | 2m | 3m | 4m | 5m |
|---|---|---|---|---|---|
| Transverse (X) | 0.03mm | 0.05mm | 0.07mm | 0.09mm | 0.12mm |
| Vertical (Y) | 0.03mm | 0.04mm | 0.07mm | 0.09mm | 0.11mm |
| Depth (Z) | 0.05mm | 0.11mm | 0.18mm | 0.24mm | 0.32mm |
| Camera Sizes | 400mm OAL: 506mm (20″), 900mm OAL: 1016mm (40″) Custom sizes available* |
|---|---|

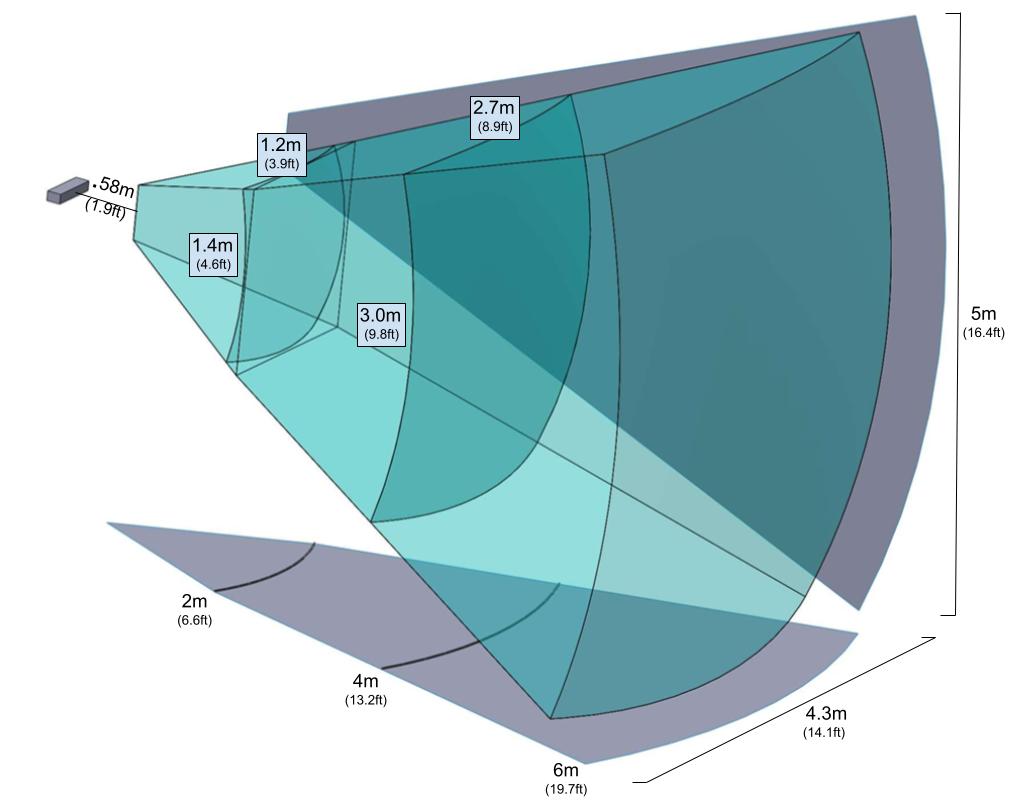

| Field of View X/Y | 400mm: 35°/44° 900mm: 20°/44° Custom FOVs available* |
| Camera Weight | 400mm: 2.4kg (5.3lb) 900mm: 3.8kg (8.4lb) |
| Probe Weight | 0.5kg (1.1lb) |
| Measuring Range | Z-Depth up to 10m; Best accuracy under 5m |
| Refresh Rate | Probe Tool: 60Hz, Single Point: 400Hz |
| Traceability | Calibrated against a NIST-traceable CMM |
| Camera Connectivity | Private 2.4GHz WiFi to USB Adapter, or Wired USB-B 2.0. Custom connectivity available* |
| Probe Connectivity | Infrared link to camera, no radio used |
| Camera Power | 12V/0.75A with standard DC5521 connector. Custom connectors available* |
| Probe Power | 5V/1.5A, USB charger and cable included |
| Probe Battery Life | 8hr continuous use (normal brightness), 4hr continuous use (high brightness) |
| Probe Tips | 4mm Carbide Ball with 70mm and 240mm OAL. Custom tips available* |
| Camera Mount | 1.5″ Dovetail Mount. Custom mounts available* |
| Host PC Requirements | Windows 10+, 64-bit |
| Software Integrations | SolidWorks, Rhino3D, and CMM-Manager. Custom plugins and software available* |
| Setup Time | <10min from case to points |
*MOQ may apply
Works With Your CAD Software
Resolute sends measurements straight into the CAD and inspection software you already use. Each plug-in is built and maintained by BIG.
SolidWorks + RHino3d
Instantly create 3D Sketches from the points you take. Speed up reverse engineering and part design without needing to port your data between programs.
CMM-Manager
Resolute connects to CMM-Manager over the I++ DME standard, so inspection routines, reporting and GD&T analysis run the same way they do on a traditional CMM.
